Bagaimana cara menggunakan gambar di Android SQLite yang lebih besar dari batasan CursorWindow?

Catatan

Ini tidak disarankan karena kemungkinan masih cukup tidak efisien dibandingkan dengan menyimpan jalur ke file gambar.

Jawaban yang jelas adalah dengan membagi gambar menjadi bagian-bagian yang dapat diatur (potongan)

  • (katakanlah 256 ribu bongkahan (14 bongkahan seperti itu akan menampung sekitar 3,5Mb))

memungkinkan potongan individu untuk dirakit saat diperlukan.

Contoh Sederhana

  • Contoh ini mengilustrasikan penyimpanan, pengambilan, perakitan, dan tampilan gambar yang terlalu besar (sekitar 3,5 MB).

  • Untuk membuat gambar inti tersedia dengan mudah, gambar tersebut telah ditempatkan ke dalam folder aset dan kemudian disalin, oleh Aplikasi, ke data Aplikasi (data/data/gambarsaya/) (daripada menulis kode tambahan, katakanlah gunakan kamera).

  • dua tabel digunakan

    • tabel, bernama imagemaster , untuk data gambar tunggal mis. itu nama dan
    • tabel kedua, bernama imagechunk untuk potongan yang masing-masing merujuk ke baris masing-masing di tabel imagemaster.

DatabaseHelper DBHelper.java :-

public class DBHelper extends SQLiteOpenHelper {

    public static final String DBNAME = "mydb";
    public static final int DBVERSION = 1;

    public static final String TBL_IMAGEMASTER = "image_matser";
    public static final String COL_IMAGEMASTER_ID = BaseColumns._ID;
    public static final String COL_IMAGEMASTER_DESCRIPTION = "description";
    public static final String COL_IMAGEMASTER_THUMBNAIL = "thumbnail";

    public static final String TBL_IMAGECHUNK = "imagechunk";
    public static final String COL_IMAGECHUNK_ID = BaseColumns._ID;
    public static final String COL_IMAGECHUNK_OWNER = "owner";
    public static final String COL_IMAGECHUNK_CHUNK = "chunk";
    public static final String COL_IMAGECHUNK_CHUNKORDER = "chunkorder";
    public static final String COL_IMAGECHUNK_CHUNKSIZE = "chunksize";

    public static final int MAXIMUM_CHUNK_SIZE = 256 * 1024; // 256k chunks

    // Some codes for when/if things go wrong
    public static final long NOSUCHFILE = -2;
    public static final long INPUT_ASSIGN_IO_ERROR = -3;
    public static final long INPUT_READ_IO_ERROR = -4;
    public static final long CHUNKCOUNTMISMATCH = -5;

    SQLiteDatabase mDB;

    public DBHelper(Context context) {
        super(context, DBNAME, null, DBVERSION);
        mDB = this.getWritableDatabase(); //Open the database
    }

    @Override
    public void onCreate(SQLiteDatabase db) {
        // The imagemaster table
        String mImageMasterCrtSQL = "CREATE TABLE IF NOT EXISTS " + TBL_IMAGEMASTER + "(" +
                COL_IMAGEMASTER_ID + " INTEGER PRIMARY KEY, " +
                COL_IMAGEMASTER_DESCRIPTION + " TEXT UNIQUE, " +
                COL_IMAGEMASTER_THUMBNAIL + " BLOB DEFAULT x'00' " +
                ")";
        db.execSQL(mImageMasterCrtSQL);

        // The imagechunk table
        String mImageChunkCrtSQL = "CREATE TABLE IF NOT EXISTS " + TBL_IMAGECHUNK + "(" +
                COL_IMAGECHUNK_ID + " INTEGER PRIMARY KEY, " +
                COL_IMAGECHUNK_OWNER + " INTEGER REFERENCES " + TBL_IMAGEMASTER + "(" +
                COL_IMAGEMASTER_ID +
                ")," +
                COL_IMAGECHUNK_CHUNKORDER + " INTEGER, " +
                COL_IMAGECHUNK_CHUNKSIZE + " INTEGER, " +
                COL_IMAGECHUNK_CHUNK + " BLOB DEFAULT x'00'" +
                ")";
        db.execSQL(mImageChunkCrtSQL);
    }

    @Override
    public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

    }

    // Need to turn on FOREIGN KEY support
    @Override
    public void onConfigure(SQLiteDatabase db) {
        super.onConfigure(db);
        db.setForeignKeyConstraintsEnabled(true);
    }

    // Add an imagemaster row (private as imagemaster row and imagechunk rows are to be added together)
    private long addImageMaster(String description, byte[] thumbnail) {
        ContentValues cv = new ContentValues();
        cv.put(COL_IMAGEMASTER_DESCRIPTION,description);
        if (thumbnail.length > 0) {
            cv.put(COL_IMAGEMASTER_THUMBNAIL,thumbnail);
        }
        return mDB.insert(TBL_IMAGEMASTER,null,cv);
    }

    // Add an imagechunk row (private as imagemaster and imagechucks will be added togther)
    private long addImageChunk(long owningImage, long order, byte[] image) {
        ContentValues cv = new ContentValues();
        cv.put(COL_IMAGECHUNK_OWNER,owningImage);
        cv.put(COL_IMAGECHUNK_CHUNKORDER,order);
        cv.put(COL_IMAGECHUNK_CHUNKSIZE,image.length);
        cv.put(COL_IMAGECHUNK_CHUNK,image);
        return mDB.insert(TBL_IMAGECHUNK,null,cv);
    }

    // Add imagemaster and all imagechunk rows from a File
    public long storeImageFromFile(String description, File image, byte[] thumbnail, boolean printstacktrace) {
        long rv = NOSUCHFILE;
        long master_id;
        if (!image.exists()) {
            return rv;
        }

        //Get image info from file
        long chunkcount = (image.length() / (long) MAXIMUM_CHUNK_SIZE);
        if ((image.length() - (chunkcount * (long) MAXIMUM_CHUNK_SIZE)) > 0) {
            chunkcount++;
        }
        // Add the image master row
        rv = addImageMaster(description, thumbnail);
        if (rv < 1) {
            return rv;
        }
        master_id = rv;
        // Prepare to save chunks
        byte[] buffer = new byte[MAXIMUM_CHUCK_SIZE];
        int currentchunk = 0;
        int readlength = 0;
        rv = INPUT_ASSIGN_IO_ERROR;
        long chunksavedcount = 0;
        try {
            InputStream is = new FileInputStream(image);
            rv = INPUT_READ_IO_ERROR;
            while ((readlength = is.read(buffer)) > 0) {
                if (readlength == MAXIMUM_CHUNK_SIZE) {
                    if (addImageChunk(master_id, currentchunk++, buffer) > 0) {
                        chunksavedcount++;
                    }
                } else {
                    byte[] lastbuffer = new byte[readlength];
                    for (int i = 0; i < readlength; i++) {
                        lastbuffer[i] = buffer[i];
                    }
                    if (addImageChunk(master_id, currentchunk, lastbuffer) > 0) {
                        chunksavedcount++;
                    }
                }
            }
            is.close();
        } catch (IOException ioe) {
            if (printstacktrace) {
                ioe.printStackTrace();
            }
            return rv;
        }
        if (chunksavedcount != chunkcount) {
            rv = CHUNKCOUNTMISMATCH;
        }
        return rv;
    }

    //Get the image as a byte array (could easily return a BitMap) according to the image description
    public byte[] getAllChunksAsByteArray(String imageDescription) {
        String column_chucksize_sum = "chuck_size_sum";
        long master_id = -1;
        int imagesize = 0;

        //Stage 1 get the image master id according to the description
        String[] columns = new String[]{COL_IMAGEMASTER_ID};
        String whereclause = COL_IMAGEMASTER_DESCRIPTION  + "=?";
        String[] whereargs = new String[]{imageDescription};
        Cursor csr = mDB.query(TBL_IMAGEMASTER,columns,whereclause,whereargs,null,null,null,null);
        if (csr.moveToFirst()) {
            master_id = csr.getLong(csr.getColumnIndex(COL_IMAGEMASTER_ID));
        }
        //If no such image then return empty byte array
        if (master_id < 1) {
            csr.close();
            return new byte[0];
        }

        // Stage 2 get the total size of the image
        columns = new String[]{"sum(" + COL_IMAGECHUNK_CHUNKSIZE + ") AS " + column_chucksize_sum};
        whereclause = COL_IMAGECHUNK_OWNER + "=?";
        whereargs = new String[]{String.valueOf(master_id)};
        csr = mDB.query(TBL_IMAGECHUNK,columns,whereclause,whereargs,null,null,COL_IMAGECHUNK_CHUNKORDER + " ASC");
        if (csr.moveToFirst()) {
            imagesize = csr.getInt(csr.getColumnIndex(column_chucksize_sum));
        }
        //If no chunks or all chunks are empty return empty byte array
        if (imagesize < 1) {
            csr.close();
            return new byte[0];
        }

        //Stage 3 combine all the chunks into a single byte array
        columns = new String[]{COL_IMAGECHUNK_CHUNK, COL_IMAGECHUNK_CHUNKSIZE};
        csr = mDB.query(TBL_IMAGECHUNK,columns,whereclause,whereargs,null,null,COL_IMAGECHUNK_CHUNKORDER + " ASC");
        if (csr.getCount() < 1) {
            csr.close();
            return new byte[0];
        }
        int rv_offset = 0;
        byte[] rv = new byte[imagesize];
        while (csr.moveToNext()) {
            int currentsize = csr.getInt(csr.getColumnIndex(COL_IMAGECHUNK_CHUNKSIZE));
            byte[] thischunk = csr.getBlob(csr.getColumnIndex(COL_IMAGECHUNK_CHUNK));
            for (int i = 0; i < thischunk.length; i++) {
                rv[rv_offset + i] = thischunk[i];
            }
            rv_offset = rv_offset + currentsize;
        }
        csr.close();
        return rv;
    }
}

Aktivitas MainActivity.java

public class MainActivity extends AppCompatActivity {

    DBHelper mDBHlpr; //The database helper
    ImageView mMyImageView; //For displaying the image (initially nothing shown)
    Button mTestIt; //Button that will retrieve the image from the DB and display it
    String mSaveDirectory = "myimages"; //The directory in which to save the image file
    byte[] extracted_image; //For the retrieved image


    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mMyImageView = this.findViewById(R.id.myimageview);
        mTestIt = this.findViewById(R.id.testit);
        mTestIt.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                showimage(extracted_image); //<<<<<<<<<< extract the image and display it.
            }
        });

        mDBHlpr = new DBHelper(this); //<<<<<<<<<< instantiate the Database Helper

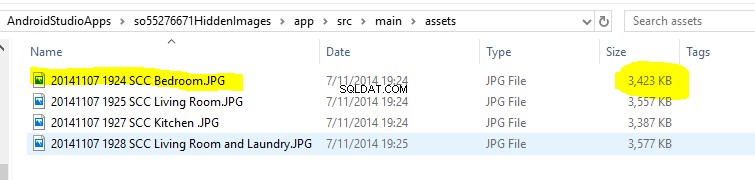

        String testfilename = "20141107 1924 SCC Bedroom.JPG"; //The file to get from the assets folder
        String testdescription = "MyTestImage"; //The description to give the image

        //1. copy the file from the assets folder e.g. akin to taking photo from camera
        File testfile = new File(saveAssetAsFile(testfilename));

        //2. Add the image and the chucks to the DB
        mDBHlpr.storeImageFromFile(testdescription,testfile,new byte[]{0,1,2,3,4,5,6},true);

        //3. Extract the rows and write them to the log
        Cursor csr = mDBHlpr.getWritableDatabase().query(DBHelper.TBL_IMAGEMASTER,null,null,null,null,null,null);
        DatabaseUtils.dumpCursor(csr);
        csr = mDBHlpr.getWritableDatabase().query(DBHelper.TBL_IMAGECHUNK,null,null,null,null,null,null);
        DatabaseUtils.dumpCursor(csr);
        csr.close();

        //4. extract the byte array for the image display the length of the byte array
        extracted_image = mDBHlpr.getAllChunksAsByteArray(testdescription);
        Log.d("EXTRACTED","The extracted image size is " + String.valueOf(extracted_image.length));
    }


    //Copy the asset to a file
    private String saveAssetAsFile(String asset) {

        //For ease use data/data/<package_name>/myimages to save the image as a file
        //Note a bit of a cheat as getDatabasePath will return  data/data/<package_name>/databases/xxx (or equivalent)
        //GetDatabasepath available for all Android versions
        String filepath = this.getDatabasePath("xxx").getParentFile().getParent() + File.separator + mSaveDirectory + File.separator + asset;
        File savelocation = new File(filepath);

        //If the file exists then no need to copy again so return
        if (savelocation.exists()) return savelocation.getPath();
        //Create the myimages directory if needed (will be required first run)
        if (!savelocation.getParentFile().exists()) {
            savelocation.getParentFile().mkdirs();
        }
        byte[] buffer = new byte[DBHelper.MAXIMUM_CHUNK_SIZE]; //Use 256k buffer as size is defined
        int buffer_length;
        try {
            InputStream is = this.getAssets().open(asset);
            FileOutputStream os = new FileOutputStream(savelocation);
            while ((buffer_length = is.read(buffer)) > 0) {
                os.write(buffer,0,buffer_length);
            }
            os.flush();
            os.close();
            is.close();

        } catch (IOException ioe) {
            ioe.printStackTrace();
        }
        return savelocation.getPath();
    }

    private void showimage(byte[] imagetoshow) {
        Bitmap bmp = BitmapFactory.decodeByteArray(imagetoshow, 0, imagetoshow.length);
        mMyImageView.setImageBitmap(bmp);
    }
}

Hasil

Saat Aplikasi dijalankan (tidak ada gambar):-

Setelah mengklik tombol :-

Gambar diambil dari DB

Catatan :-

........
03-24 16:44:36.416 22859-22859/aaa.so55276671hiddenimages I/System.out: 13 {
03-24 16:44:36.416 22859-22859/aaa.so55276671hiddenimages I/System.out:    _id=14
03-24 16:44:36.416 22859-22859/aaa.so55276671hiddenimages I/System.out:    owner=1
03-24 16:44:36.416 22859-22859/aaa.so55276671hiddenimages I/System.out:    chunkorder=13
03-24 16:44:36.416 22859-22859/aaa.so55276671hiddenimages I/System.out:    chunksize=97210
03-24 16:44:36.416 22859-22859/aaa.so55276671hiddenimages I/System.out:    chunk=<unprintable>
03-24 16:44:36.416 22859-22859/aaa.so55276671hiddenimages I/System.out: }
03-24 16:44:36.416 22859-22859/aaa.so55276671hiddenimages I/System.out: <<<<<
03-24 16:44:36.423 22859-22859/aaa.so55276671hiddenimages W/CursorWindow: Window is full: requested allocation 262144 bytes, free space 261532 bytes, window size 2097152 bytes
03-24 16:44:36.441 22859-22859/aaa.so55276671hiddenimages W/CursorWindow: Window is full: requested allocation 262144 bytes, free space 261532 bytes, window size 2097152 bytes
03-24 16:44:36.453 22859-22859/aaa.so55276671hiddenimages D/EXTRACTED: The extracted image size is 3505082

........... click the button

03-24 16:50:09.565 22859-22859/aaa.so55276671hiddenimages D/BEFOREEXTRACT: Button clicked so extracting image.
03-24 16:50:09.583 22859-22872/aaa.so55276671hiddenimages I/art: Background sticky concurrent mark sweep GC freed 1882(116KB) AllocSpace objects, 7(1631KB) LOS objects, 0% free, 65MB/65MB, paused 6.779ms total 17.678ms
03-24 16:50:09.765 22859-22859/aaa.so55276671hiddenimages D/AFTEREXTRACT: Finished extracting the image.
  • Perhatikan bahwa pesan CursorWindow lengkap bukanlah kegagalan, melainkan hanya mengatakan bahwa telah dilakukan upaya untuk menambahkan baris, tetapi sudah penuh.
  • PERINGATAN Seperti yang dapat dilihat, 5 gambar tersebut memerlukan waktu 1 detik untuk mengekstrak dan menampilkannya



  1. Database
  2.
  3. Mysql
  4.
  5. Oracle
  6.
  7. Sqlserver
  8.
  9. PostgreSQL
  10.
  11. Access
  12.
  13. SQLite
  14.
  15. MariaDB
  1. Cara memfilter dalam hubungan satu ke banyak dengan kamar android db

  2. Bagaimana cara memperbaiki url penyedia konten tidak ditemukan di penyedia Konten android?

  3. Kesalahan Android:Tidak dapat melakukan operasi ini karena kumpulan koneksi telah ditutup

  4. Buat Database di SQLite

  5. Cara Menambahkan Bulan ke Tanggal di SQLite
